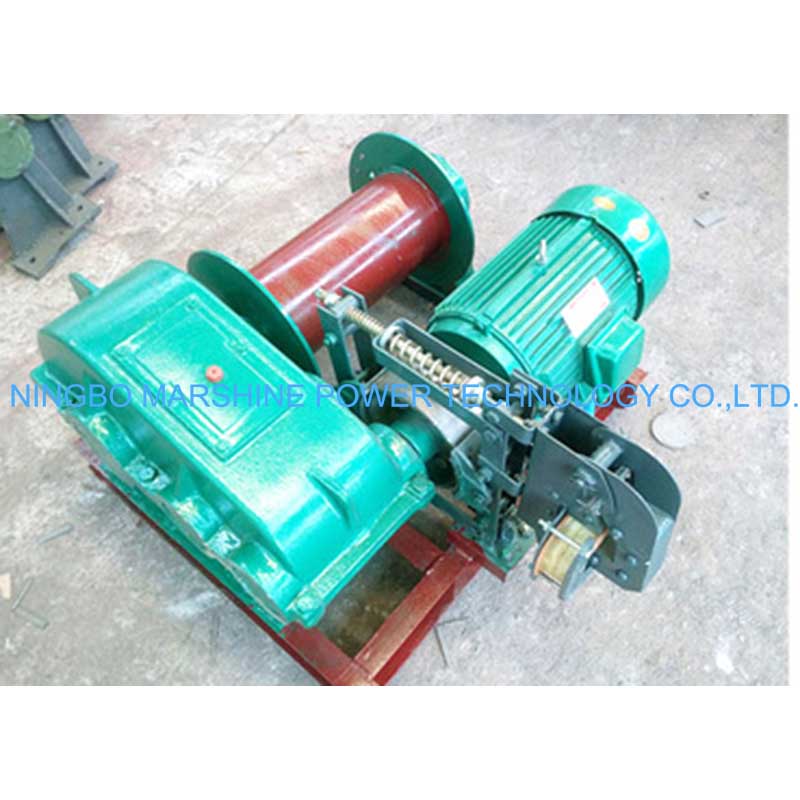

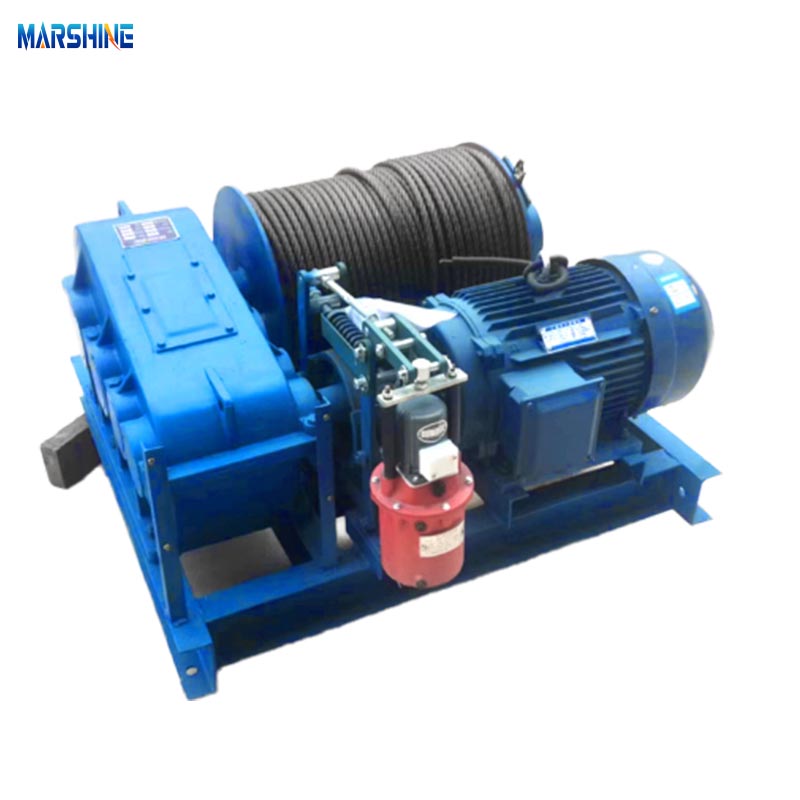

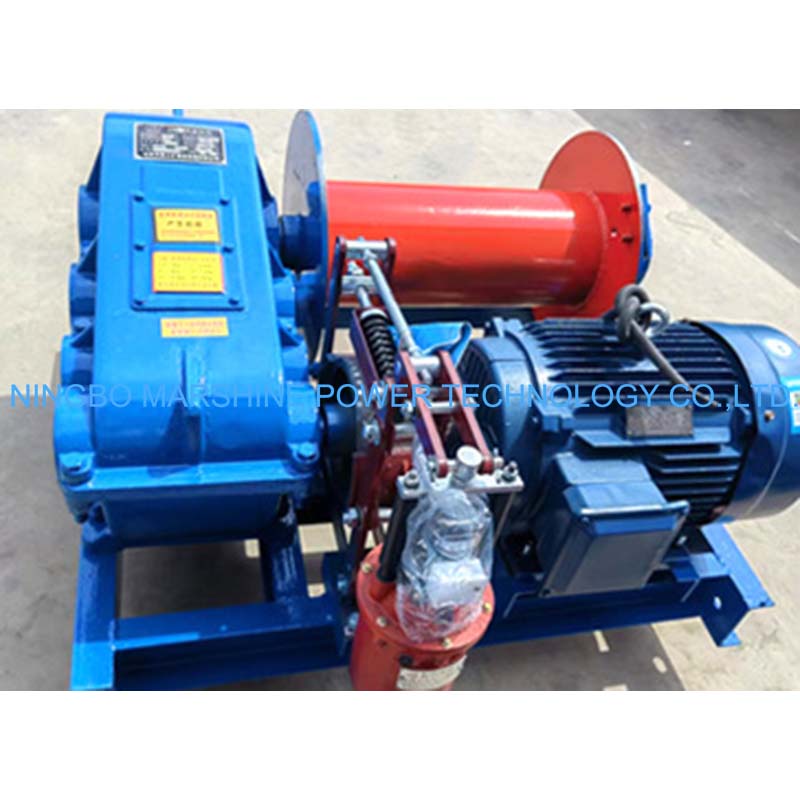

The MARSHINE Electric Powered High Speed Cable Pulling Winch Machine is a powerful yet efficient tool which was designed for the rapid and secure cable installation in the overhead and underground transmission projects. Driven by a powerful electric motor, this winch can provides a strong pulling force and fast operation speed, it is ideal for the long-term cable pulling works. With its compact design and reliable brake system, this winch can ensures a efficient operation on the construction sites while protecting the worker's safety.
Product Parameter
| Model | Rated tension(KN) | Average rope speed(m/min) | Rope capacity (m) | Wire rope diameter (mm) | Motor model | Motor power (KW) | Overall dimensions (mm) | Weight (kg) |
| MAJK0.5 | 5 | 22 | 110 | Ф7.5 | Y100L2-4 | 3 | 710*690*490 | 200 |
| MAJK1 | 10 | 22 | 80 | Ф9.3 | Y112M-4 | 4 | 710*610*410 | 300 |
| MAJK1.6 | 16 | 24 | 115 | Φ12.5 | Y132S-4 | 5.5 | 940*900*570 | 500 |
| MAJK2 | 20 | 24 | 110 | Ф13 | Y132M-4 | 7.5 | 940*900*570 | 550 |
| MAJK3.2 | 32 | 30 | 250 | Φ15.5 | YZR180L-6 | 15 | 1640*1430*820 | 1150 |
| MAJK5 | 50 | 30 | 240 | Ф21.5 | YZR225M-6 | 30 | 1900*1738*985 | 2500 |
| MAJK8 | 80 | 30 | 210 | Ф26 | YZR280S-8 | 45 | 1980*1790*1100 | 3500 |
| MAJK10 | 100 | 30 | 300 | Ф30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
Product Feature

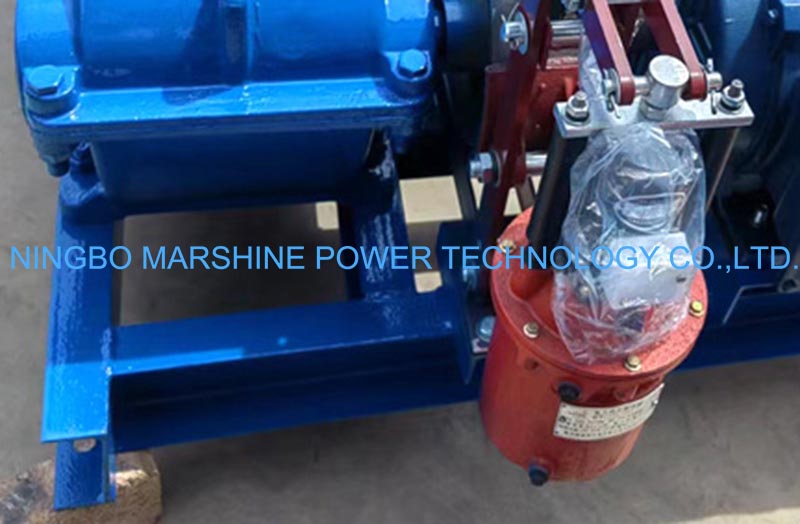

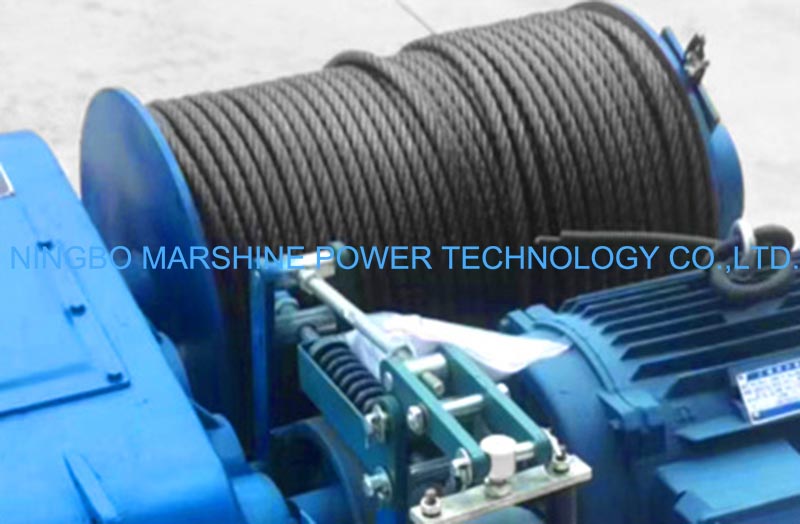

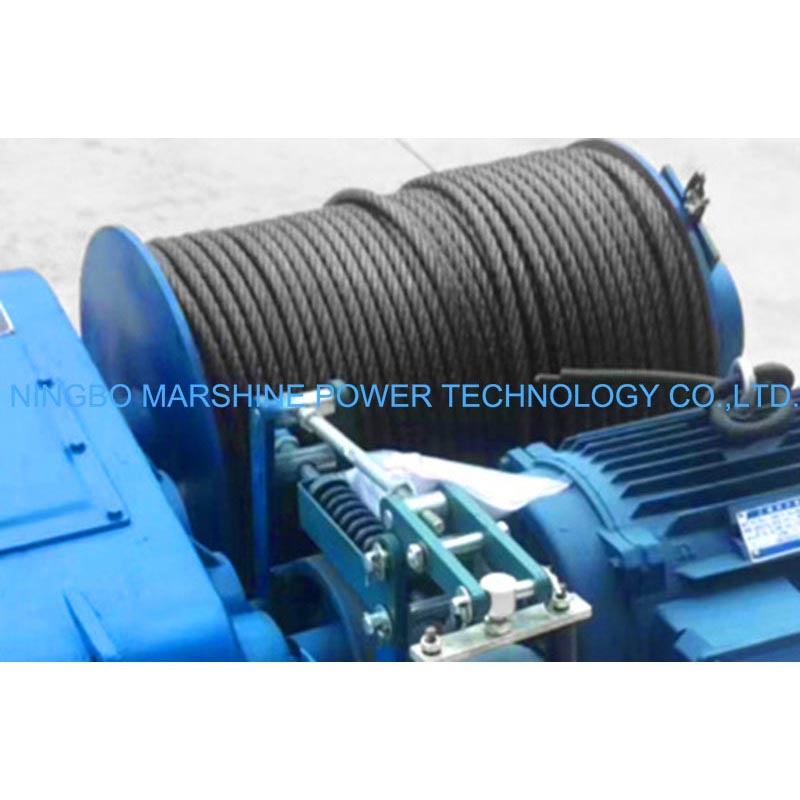

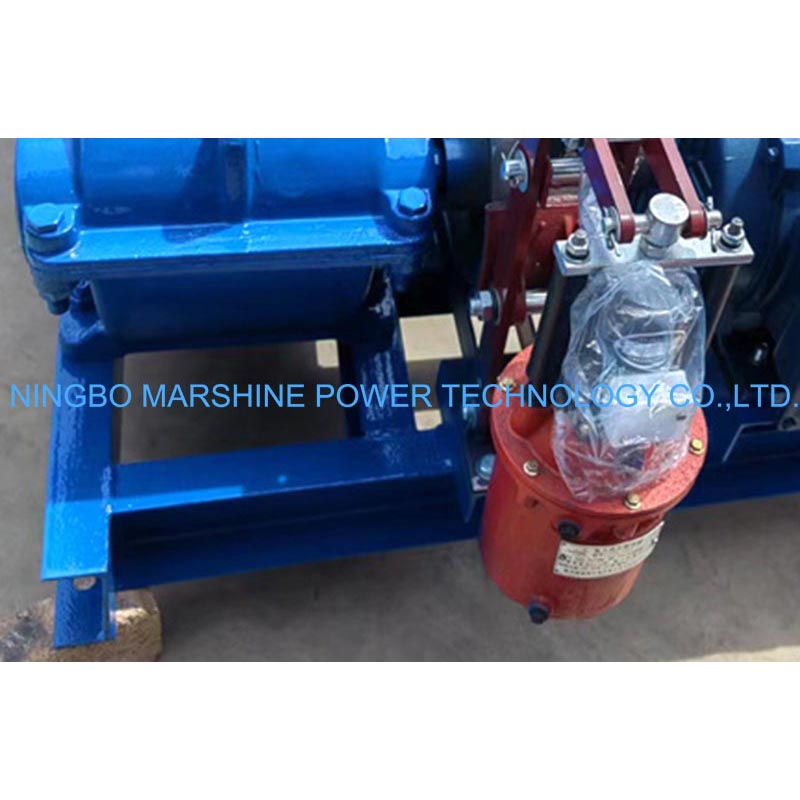

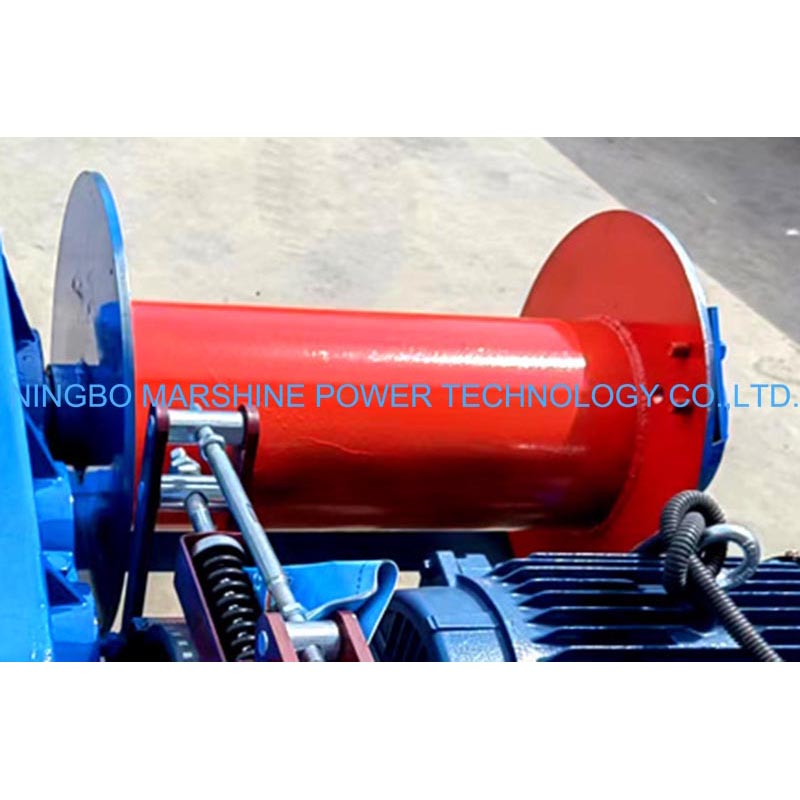

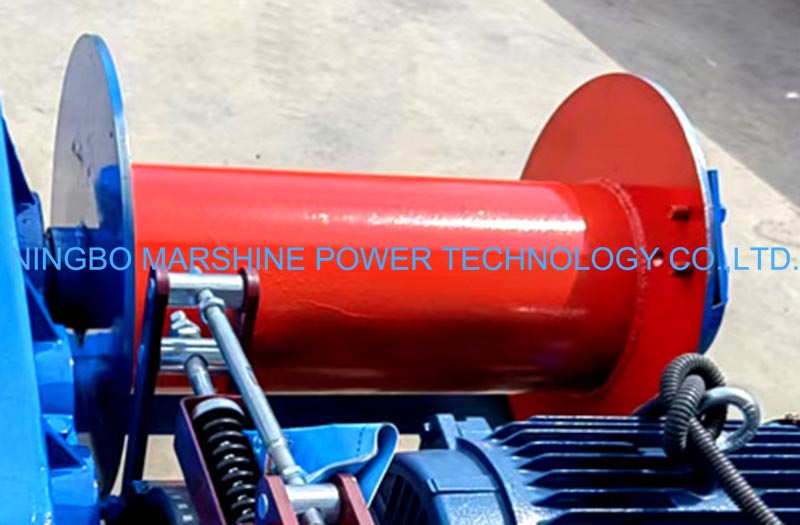

The MARSHINE Electric Powered High Speed Cable Pulling Winch Machine is been built with the robust alloy steel structure and with the reinforced drum, can handling the long and heavy cable loads. It owns the clean, low-noise electric operation with consistent torque output for reliable performance. It can adjust the speed for the precise control based on terrain and cable type. Equipped with emergency stop button, thermal protection, and overload clutch for secure operation. And with its optimized motor and gear system, this winch allows for the fast cable pulling, can significantly reducing the working time.
Product Application
This MARSHINE Electric Powered High Speed Cable Pulling Winch Machine is a efficient tool which was ideal for the power transmission and distribution projects, can deal with the telecommunication cable laying with ease. It is also suitable for the overhead and underground cable installation, utility lines construction and maintenance, or the industrial and municipal infrastructure works.
Product Details
The MARSHINE Electric Powered High Speed Cable Pulling Winch Machine is a powerful electric winch machine for the professionals who seek for the fast, safe, and dependable cable pulling performance.
Original Country: China.
Leading Time: 14-20days(1-50unit).
Warranty:1year.
International Certified:CE,ISO.
