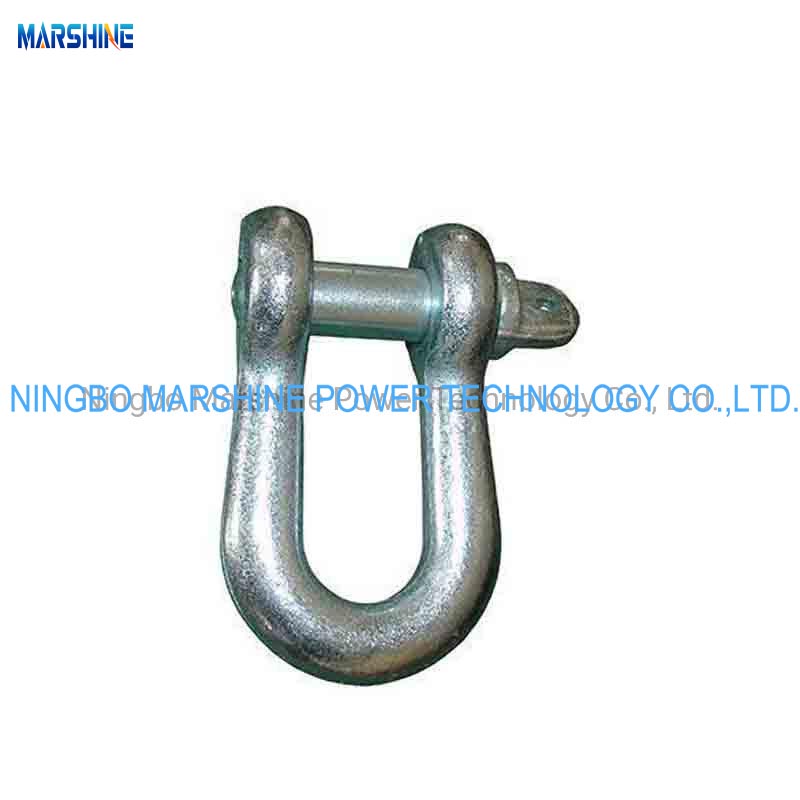

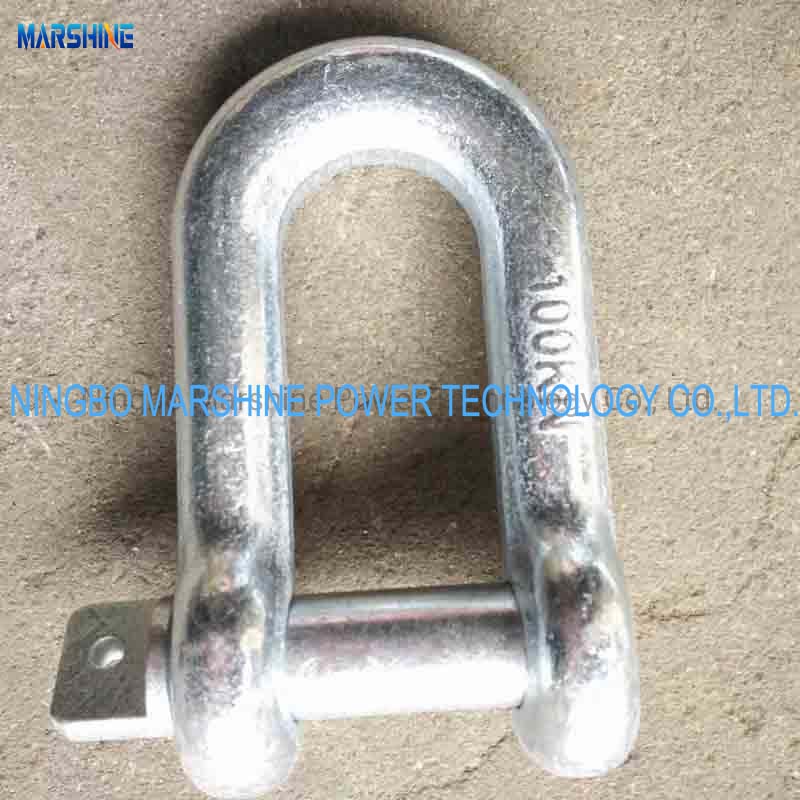

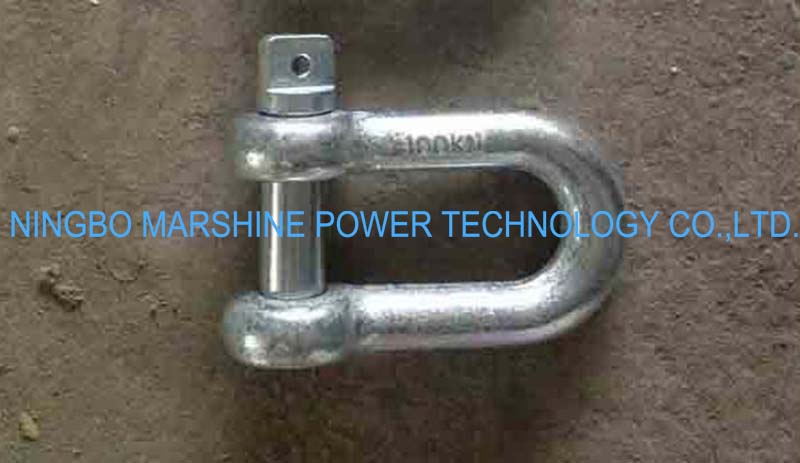

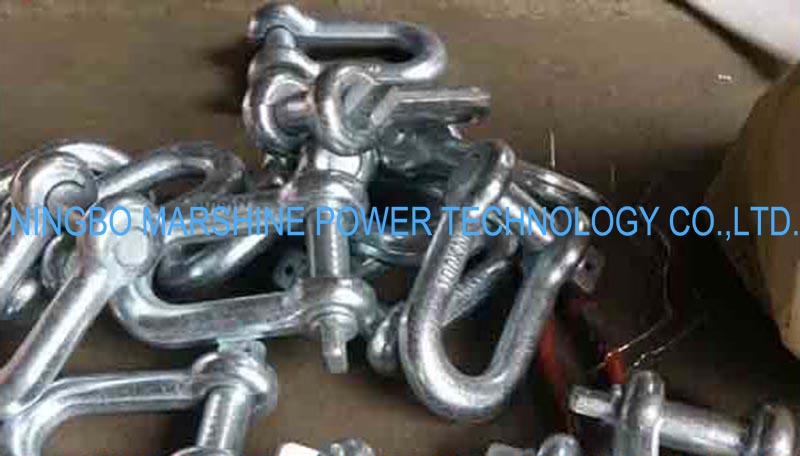

Built to withstand the heavy-duty loads and repetitive use, this MARSHINE High Strength Durable Shackle can ensures its longevity and reliability. Combines forged alloy steel strength with precision engineering, it can secure the heavy loads with confidence. Engineered to deliver reliable safety and high-performance in demanding rigging, lifting, and anchoring applications, this durable shackle can be a good choice for the construction teams who need to lifting and load the heavy loads.

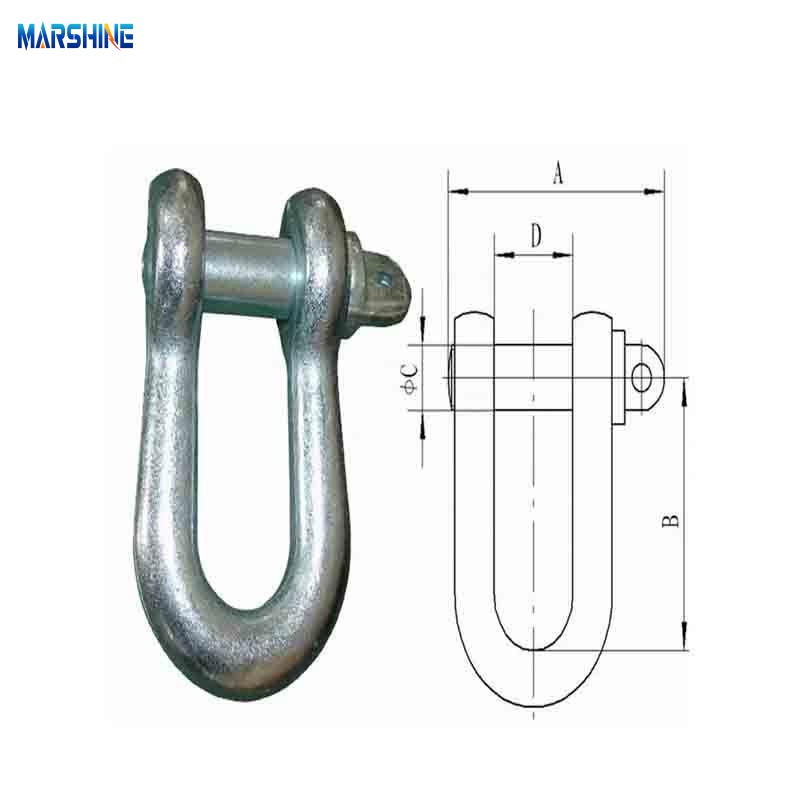

Product Parameter
| Item number | Model | Main size(mm) | Rated load(KN) | Weight(kg) | |||
| A | B | C | D | ||||
| 17131 | GXK-1 | 55 | 42 | 12 | 20 | 10 | 0.15 |
| 17132 | GXK-2 | 67 | 58 | 16 | 24 | 20 | 0.29 |
| 17133 | GXK-3 | 97 | 82 | 20 | 34 | 30 | 0.8 |
| 17133A | GXK-3A | 97 | 112 | 20 | 34 | 30 | 0.9 |
| 17134 | GXK-5 | 107 | 89 | 22 | 38 | 50 | 1.12 |
| 17134A | GXK-5A | 107 | 131 | 22 | 38 | 50 | 1.29 |
| 17135 | GXK-8 | 128 | 97 | 30 | 45 | 80 | 2.4 |
| 17136 | GXK-10 | 141 | 114 | 34 | 48 | 100 | 3.56 |
| 17137 | GXK-16 | 152.5 | 139 | 37 | 54 | 160 | 4.8 |
| 17138 | GXK-20 | 164 | 140 | 39 | 60 | 200 | 5.17 |
| 17139 | GXK-30 | 186 | 146 | 50 | 68 | 300 | 7.5 |
Product Feature
Made of forged alloy steel and heat treated to provide strong load capacity.
With the galvanized or painted surface, can offer a long service life in hard operation environments.
Our MARSHINE high-strength durable shackle features a fixed pin structure to prevent the accidental loosening.
Its tough structure can provide a reliable support in dynamic environments such as to fix the hydraulic cable tensioner and let it operation.
Product Application
Can be apply to overhead power lines and transmission projects.
Can be used to cable pulling and tensioning systems.
Our MARSHINE High Strength Durable Shackle is ideal for hoisting, lifting and rigging in utility and industrial environments.
For use with winches, tackle systems, conductor clamps and rope accessories.
Suitable for offshore mooring, towing and shipyard cargo handling.
Product Details
Here are characteristics of the MARSHINE High Strength Durable Shackle, which is our outstanding work for hoisting constructions:
Stringent quality control: This tool is manufactured to meet the international safety standards CE and ISO.
Place Of Origin: China.
Leading Time: 7days(1-500pcs).
Warranty: 1year.
