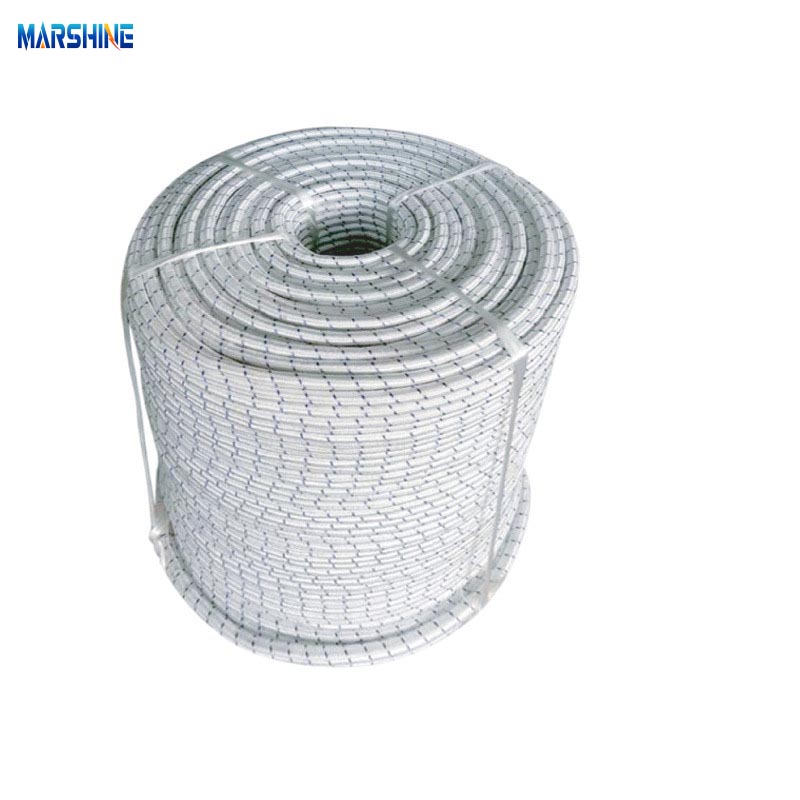

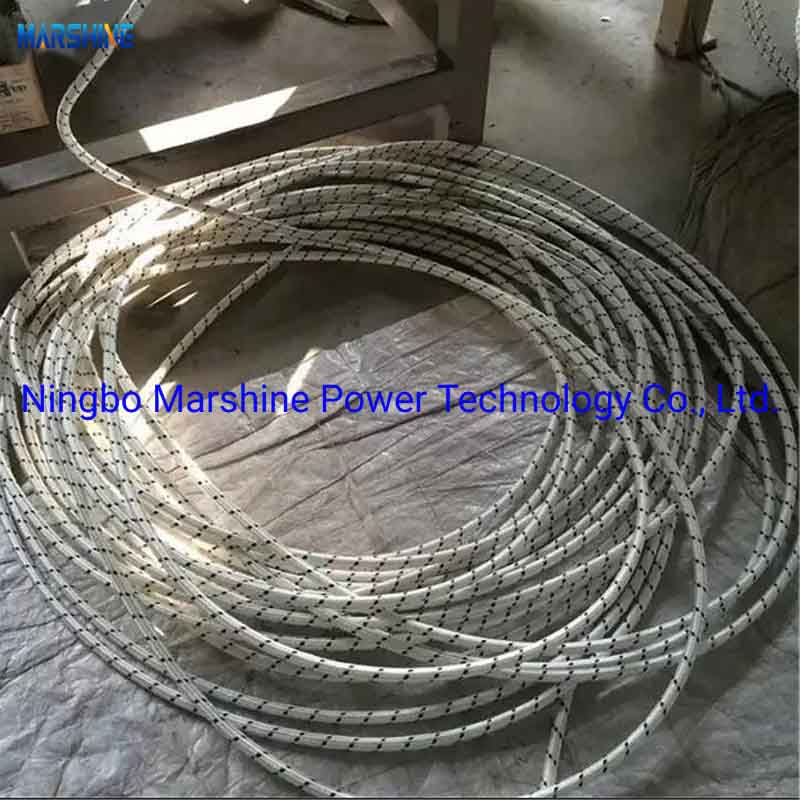

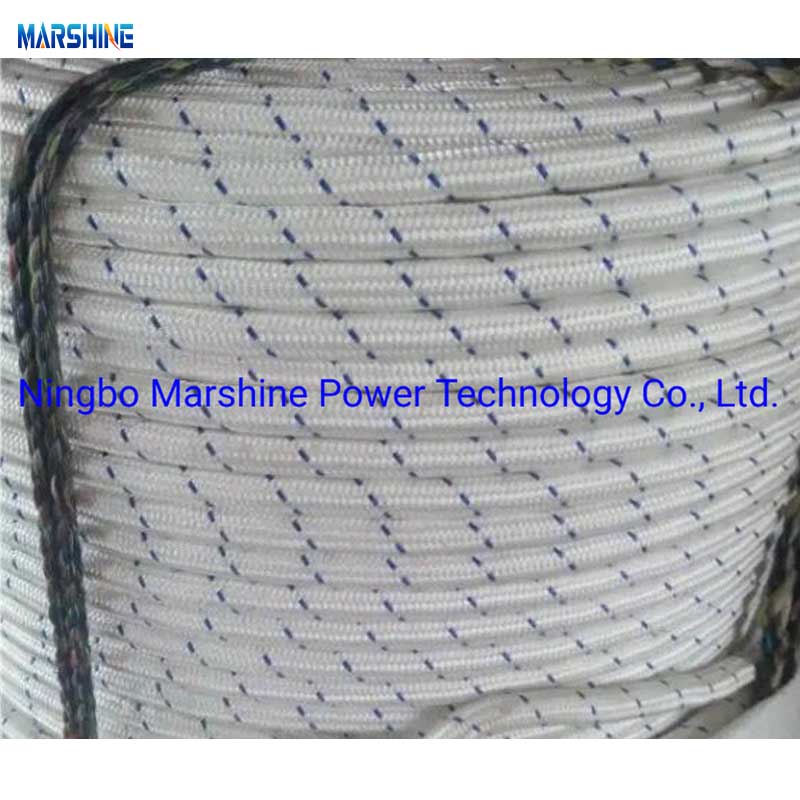

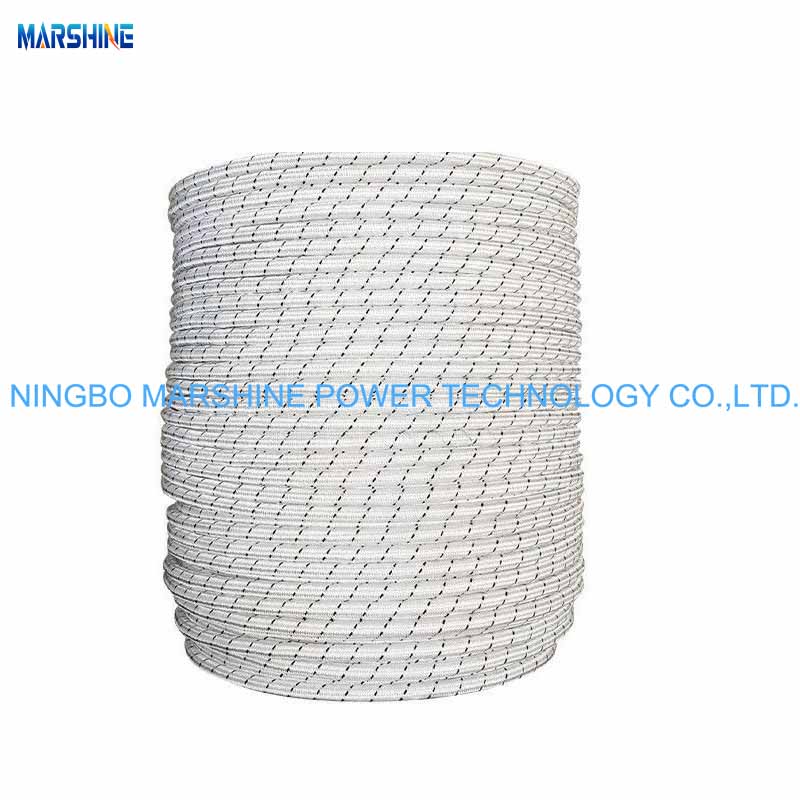

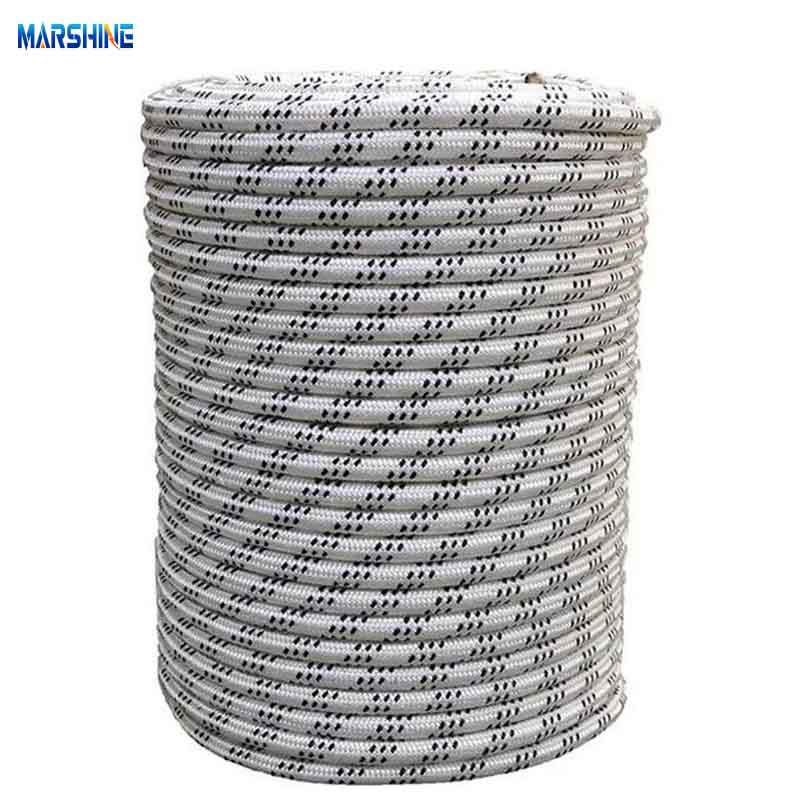

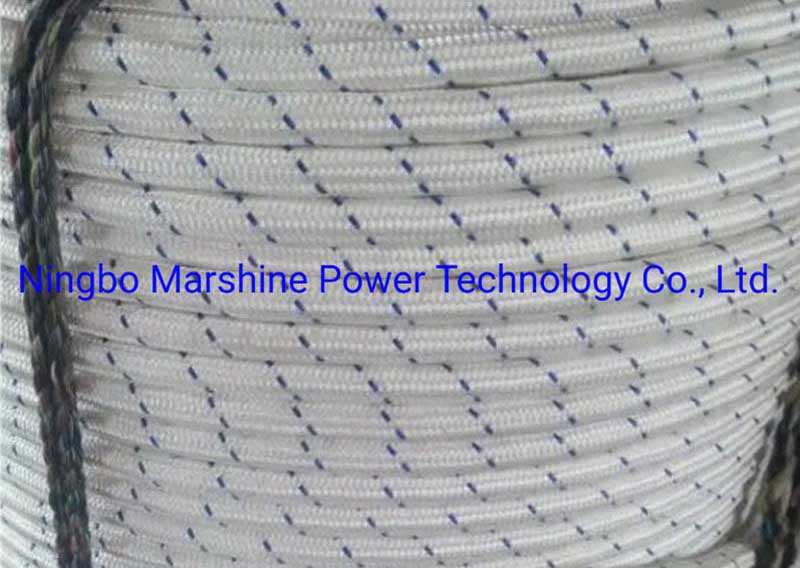

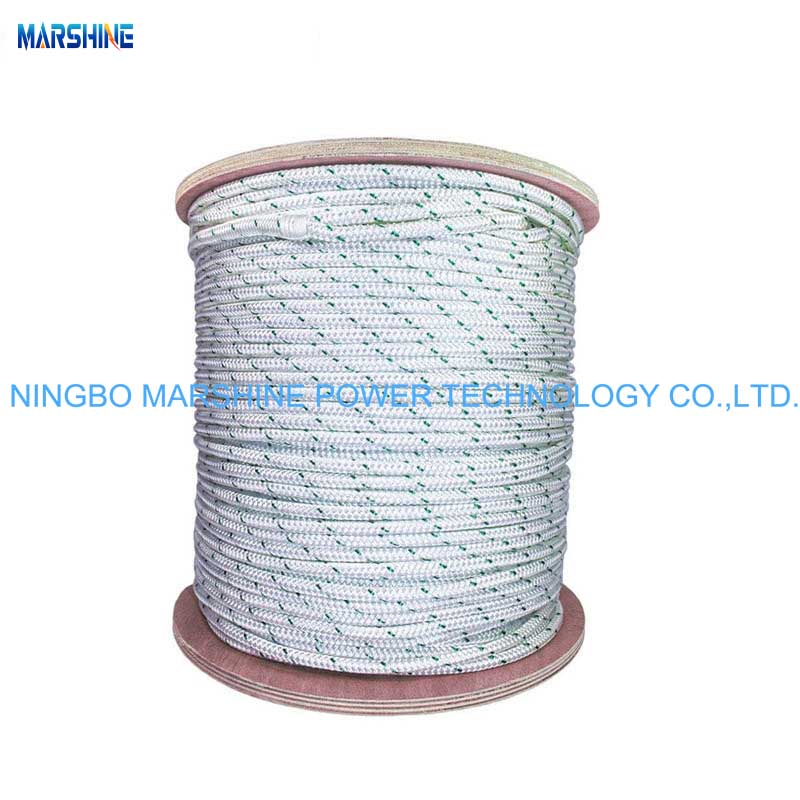

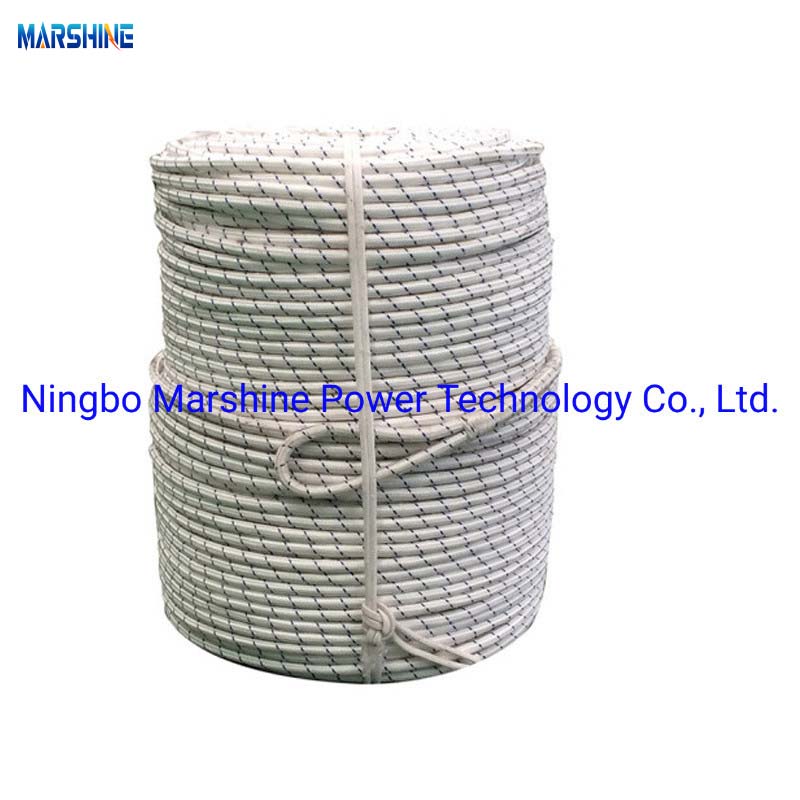

Engineered with ultra-high-molecular-weight polyethylene (UHMWPE), this MARSHINE DSM Dyneema Fibre Rope outperforms traditional steel wire and synthetic alternatives, offering a superior strength-to-weight ratio, exceptional resistance to harsh environments, and unparalleled versatility.
Product Parameter
| Item number | Diameter(mm) | Linear density(g/m) | After diameter(mm) | After linear density(g/m) | Break force(KN) |
| 18170A | 2 | 2.31 | 3 | 3.2 | 4.3 |
| 18170B | 3 | 4.65 | 4.5 | 7.3 | 8.5 |
| 18170C | 3.5 | 6.78 | 5 | 9.5 | 11.4 |
| 18170D | 4 | 9.31 | 5.5 | 13 | 16.6 |
| 18170E | 4.5 | 11.3 | 6 | 16 | 19 |
| 18170F | 5 | 14 | 7 | 20 | 24.4 |
| 18170G | 6 | 20 | 8 | 28.2 | 31.9 |
| 18Ô170H | 7 | 27 | 9 | 36 | 43.6 |
| 18170J | 8 | 35 | 10 | 48.4 | 58.8 |
| 18170K | 9 | 42 | 11 | 58.5 | 70.3 |
| 18170L | 10 | 56 | 12 | 77 | 92.5 |
| 18170M | 11 | 70 | 13 | 97 | 115 |
| 18170N | 12 | 84 | 14 | 113.4 | 137 |
| 18170P | 13 | 98 | 15 | 132 | 159 |
| 18170Q | 14 | 106 | 16 | 150 | 180 |
| 18170R | 16 | 132 | 18 | 177 | 211 |
| 18170S | 18 | 186 | 21 | 247.3 | 296 |
Product Feature
High Strength and Lightweight: The MARSHINE DSM Dyneema Fiber Rope is 10 times stronger than steel wire rope of the same diameter, but significantly lighter.
Low Elongation: Minimal stretching under load, ensuring precise control and tensioning.
Excellent Abrasion and UV Resistance: Designed for use in harsh outdoor environments.
Waterproof and Corrosion Resistant: Maintains performance even when exposed to moisture, oil, and chemicals.
Flexible and Easy to Operate: Smooth surface and soft texture reduce risk of injury and improve operational efficiency.
Non-Conductive: Improves safety of power line operations compared to steel cables.
Product Application
The MARSHINE DSM Dyneema Fiber Rope is ideal for pulling and stringing of conductors and OPGW cables in transmission line construction.
Maintenance and installation of utility and telecommunication infrastructure.
Offshore, offshore and rescue operations where lightweight, high-strength ropes are required.
In forestry and heavy lifting operations, synthetic ropes are preferred over metal wires.
Product Details
The MARSHINE DSM Dyneema Fibre Rope offers an advanced, lightweight, and durable alternative to conventional steel wire ropes, here are the details about it:
Reliable quality: MARSHINE uses premium Dyneema® fibers and rigorous quality control.
Field-proven durability: Trusted by linemen and technicians in all terrains and weather conditions.
Globally recognized: MARSHINE tools and accessories are used on major projects in more than 50 countries.
Trusted worldwide: Trusted by engineers, marine engineers and industry leaders around the world.
